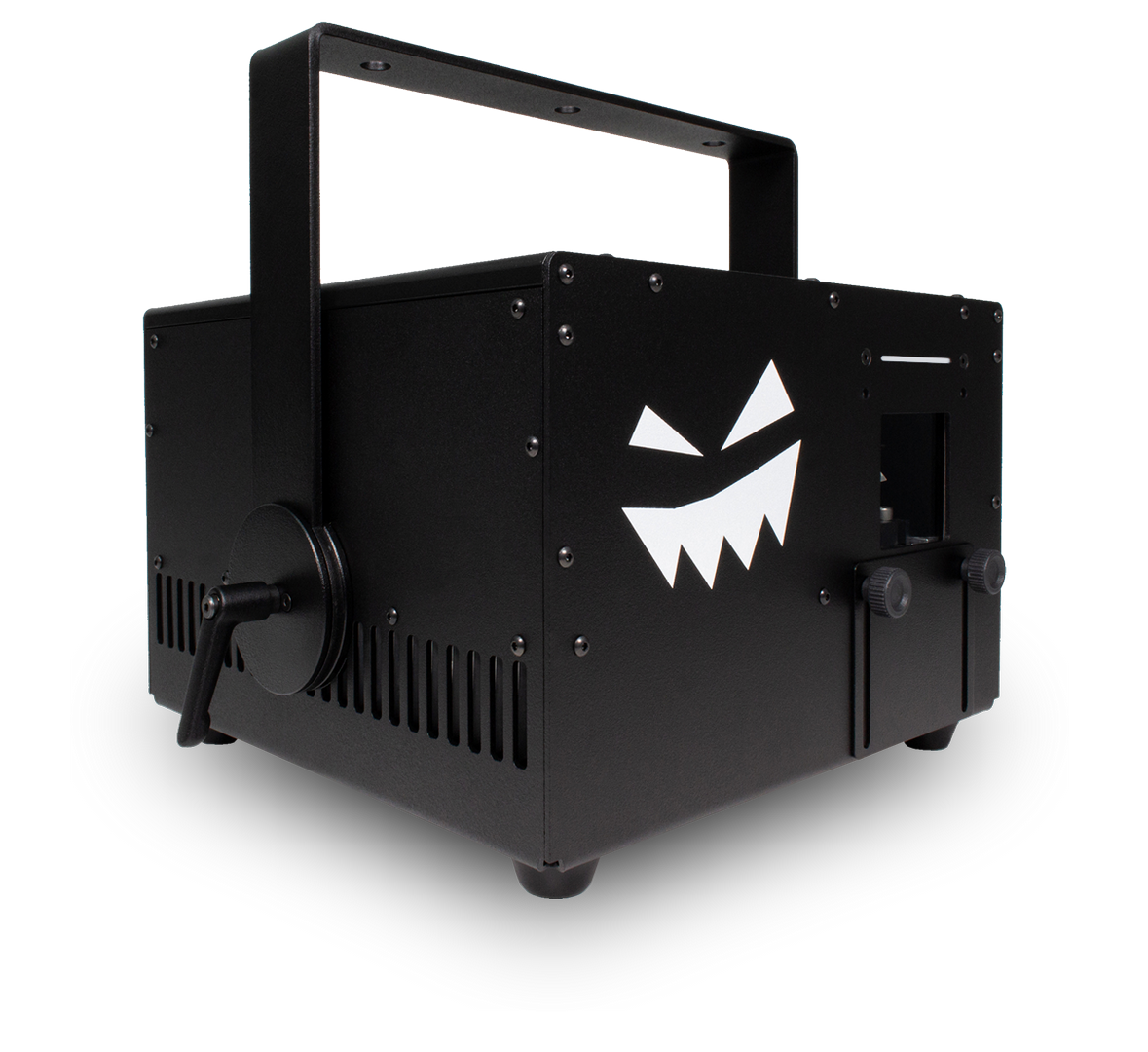

This is the new
KORE
Built from the ground up.
We started from scratch and made it more. More.
More safe.[sic] More exact. More portable. More local. More flexible. More compatible. More economical. |
More safe.[sic]
The new KORE comes with a whole range of safety features, making it the safest to use KORE ever.
|
The KORE Advanced Interlock System is one of a kind.
KORE are EN 60825-1 and ÖNORM S 1105 compliant.
More exact.
Cylindrical lenses. This should say it all.
|
More portable.
Stability doesn’t come with weight. It comes with ingenuity of design.
|
More local.
KORE are developed and manufactured in Austria - European Union. We source all components from as near as possible.
|
More flexible.
Choose between different power classes, different scanners, different control options.
|
More compatible.
The new KORE is compatible with a wide range of accessories.
|
More economical.
The new KORE comes to stay. Easy to use - easy to maintain.
|
Specification
Models:
KORE 5
KORE 10
KORE 15
Wavelength/
Power:
1400mW 638nm
1600mW 525nm
2200mW 445nm
2000mW 638nm
3200mW 525nm
4400mW 445nm
coming 2023
Divergence/
Beam Size:
< 0.6 mrad (half angle, 1/e²)
4.5 x 2.2 mm (FWHM)
< 0.7 mrad (half angle, 1/e²)
4.5 x 4.5 mm (FWHM)
coming 2023
Light Sources:
■ 2x Sharp Diodes
■ 1x Nichia Diode
■ 1x Osram Diode
■ 2x Ushio Diodes
■ 2x Nichia Diodes
■ 2x Osram Diodes
coming 2023
Power Consumption:
200W
(all lasers 100%,
full scanner load)
250W
(all lasers 100%,
full scanner load)
coming 2023
Electronics:
ColorDRIVE Influenced Custom Drivers
Proprietary Digital Scanfail Safety
Continuous Temperature Monitoring
Laser Emission LED Strip for Perfect Visibility
Temperature Controlled Laser Module
LED Indicator for Over/Under Temperature
Safety:
New Developed Scanfail Safety
Housing Interlock
Safety-Eye
Precision Bracket Fastening System
Masking Plates (up to 3-Way)
Safety Key Switch
Laser Emission LED Strip for Perfect Visibility
EN 60825-1 and ÖNORM S 1105 compliant
Control:
ILDA
Version
R, G, B Intensity Knobs
X/Y Invert Switches
Fully Complies to ILDA Standard
ILDA Daisy-Chaining
FB4 MAX
Version
Network Control
ILDA Control
DMX Control
ArtNet Control
Timecode Control
StandAlone Control
SD Card
Geometric Correction
Color Adjustment
Scanning:
EMS-6000
35kpps (8° ILDA)
Analogue Amps
EMS-8000 (optional)
60kpps (8° ILDA)
Digital Amps
F-Theta & Pincushion Correction
All scanners are made by EyeMagic in Greece, European Union.
Optics:
Low Beam Divergence due to Cylindrical Lenses
Beam Profile Consistent Across all Color Sources
High Efficiency Mirrors and Dichroic Filters
Custom Designed Stable Optic Holders
Mechanics:
Dust Resistant Design
Separated Cooling Compartment
Temperature Controlled Silent Fans
Incl. Fan Stop
Fall-Proven Safety-Eye
Easy to Maintain Design
Operation Temperature:
5°C - 40°C
(non condensing)
Dimensions/
Weight:
305 x 335 x 270mm
(L x W x H)
incl. Handles, Bracket, Safety-Eye, Masking Plates
8.5 - 9kg
Depends on Version
Included Accessories:
Available Accessories:
Downloads:
Images
Buy
KORE Laser Projectors
RGB Laser Display System with FB4 MAX Control
4.290,00 €(MwSt. excl.)
Add
KORE Laser Projectors
RGB Laser Display System with ILDA Control
4.590,00 €(MwSt. excl.)
Add
KORE Laser Projectors
RGB Laser Display System with FB4 MAX Control
5.390,00 €(MwSt. excl.)
Add
Accessories
KORE Accessories
Emergency Stop Box for any KORE laser system. Compatible to the Advanced Interlock System (AIS).
200,00 €(MwSt. excl.)
Add
KORE Accessories
Advanced Interlock System Bridging Adapter for KORE usage without emergency stop box.
20,00 €(MwSt. excl.)
Add
KORE Accessories
Rain Cover custom designed to fit any KORE laser system.
150,00 €(MwSt. excl.)
Add
KORE Accessories
Additional masking plates for up to 3-way output masking of a KORE laser projector.
35,00 €(MwSt. excl.)
Add
KORE Accessories
Custom flightcase for any KORE laser projector incl. accessories.
220,00 €(MwSt. excl.)
Add
KORE Accessories
Spare key for safety switch on any KORE laser projector.
20,00 €(MwSt. excl.)
Add
KORE Accessories
Spare key for KORE AIS Emergency Stop Box.
20,00 €(MwSt. excl.)
Add
