Cylindrical Lenses (Optical Correction)

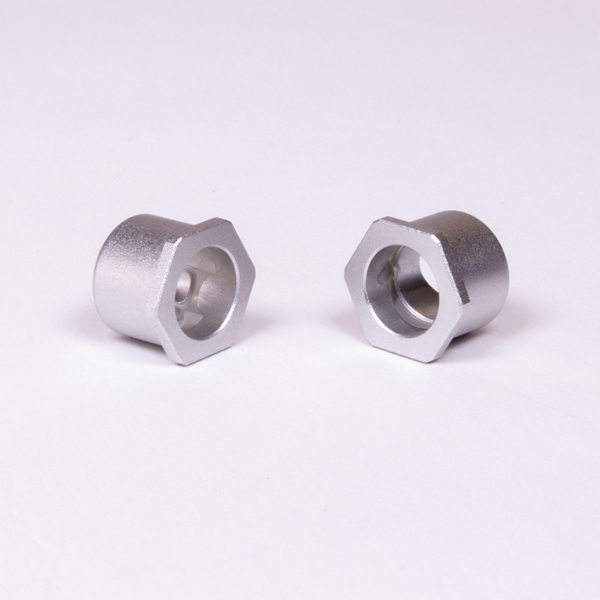

Set of two cylindrical lenses mounted in sleeves for direct use with Sparrow modules.
Used to expand the laser beam in one axis (often the slow axis). This reduces the divergence angle (far field beam size) considerably.
The cylindrical lenses come with set-screws necessary to fasten them to a Sparrow module.
To adjust the lenses, please follow our Sparrow Cylindrical Lens Adjusting Guide.
Can also be mounted on any other 12mm hole mount.
Please note: The cylindrical lenses don't come with any further parts necessary to assemble a complete Sparrow module.
Comes with:
- 2x M3x3 (1.5mm hex set screws)
Specification
| AR coating | broadband |
| Focal length | F=-4, F=+22 |
| Mounting | 12mm sleeve |
Downloads
Article in Shop
Sparrow Single Parts
Cylindrical Lens Set for Sparrow modules.
41,00 €(MwSt. excl.)
Add
